Beginner’s Guide to Cypress Getting started with End to End Testing

• Cypress is an open source front end testing tool
• It tests anything that runs on web browsers
• It allows to write, run and debug tests
• The tests are written in javascript
• It is built on Node.js and comes packaged as an npm module
• The surprising part is that the major part of the coding can be done using
• Cypress inbuilt commands, which are easy to understand.
• It also includes bundles with jQuery and inherits many of jQuery methods for UI components identification and simplifies HTML DOM tree traversal and manipulation, event handling, CSS animation, and Ajax.

Who Uses It?

Developers and QA engineers who use Javascript frameworks for web applications development use Cypress.

Why and What It Covers

• End to end testing
• Integration testing
• Unit testing
• Visual testing
• It can be installed on Mac, Windows and Linux
• It supports browsers: Canary, Chrome, Chromium, Edge, Edge Beta, Edge Canary, Electron, Firefox, Firefox Developer Edition, Firefox Nightly. It automatically detects the browsers installed in the system
• We can run specific tests in specific browsers
• We can use a cron schedule to run tests periodically
• Continuous integration is achievable
• Used for debugging
• Parallelization: can save your team time and money when you run tests parallel across many virtual machines.
• Can take screenshots automatically on failure
• Can record videos of the entire test suite
• Runs tests faster
• The next-generation End to End testing tool designed for the modern web.

Advantages of Cypress

• Timeline tracking
• No wait commands
• Automatic scrolling
• Earlier, Cypress supported only Chrome testing.
• Execution in real-time.
• Cypress dashboard and Cypress carries excellent documentation.

Setup/ Installation

This article guides how users can install Cypress on their systems to started with test automation.

Cypress is a desktop-based application that is installed on your local computer system. The desktop-based application supports the below-operating systems:

• macOS 10.9 and above (64-bit only)
• Linux Ubuntu 12.04 and above, Also Fedora 21 and Debian 8 (64-bit only)
• Windows 7 and above

If npm is used for installing the Cypress, then the user can use

• Node.js 10 or 12 and above

For Linux Users:

Ubuntu/Debian

$apt-get install libgtk2.0-0 libgtk-3-0 libgbm-dev libnotify-dev
libgconf-2-4 libnss3 libxss1 libasound2 libxtst6 xauth xvfb

CentOS

$ install -y xorg-x11-server-Xvfb gtk2-devel gtk3-devel libnotify-devel
GConf2 nss libXScrnSaver alsa-lib

Install Cypress via npm:

cd /your/project/path

npm install cypress --save-dev

This will install Cypress in a local system as a dev dependency for your project.

If you wish to directly download Cypress, then the below link can be used: download cypress

Opening Cypress

If you’re using npm to install, Cypress has now been installed to your ./node_modules system directory, with its binary executable accessible from

./node_modules/.bin.

Now you can open Cypress from your project root directory by one of the following ways:

The long way with the full path

./node_modules/.bin/cypress open

Or with the shortcut using npm bin

$(npm bin)/cypress open

Or by using npx

FYI: npx is included with npm > v5.2 or can be installed separately.

npx cypress open

Or by using yarn

yarn run cypress open

After taking sometime, the Cypress Test Runner will launch.

Cypress runner

To run the Cypress tests, cypress provides a runner from which users can run the tests written in the editor. To run the Cypress runner, the user need to run the below commands in the terminal:

Run commands in Terminal for Cypress:

Code to run Cypress:  ./node_modules/.bin/cypress open

Headless mode run: /node_modules/.bin/cypress run

To execute the cases in Cypress dashboard: ./node_modules/.bin/cypress run --record
--key 3554230a-fdea-4f74-a835-63b2cfdf0b28

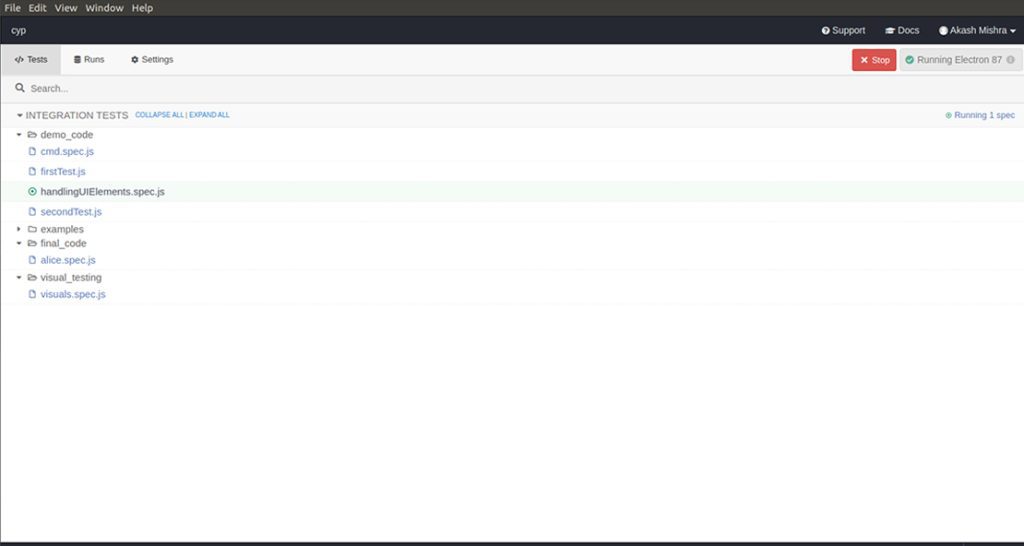

Once the user opens the runner, the user can click on the Testcase name to start executing the test case. Please see the below screen, a similar screen will be visible at your end:

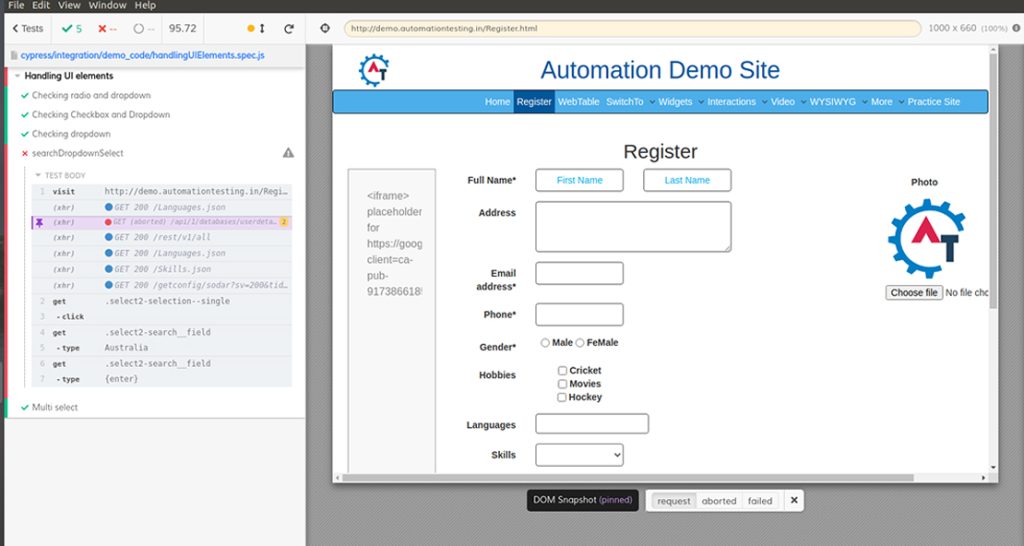

The Cypress test runner will display all the features of the test on the left side console section of the Runner and the execution details on the right-hand side console. A few of the essential call-outs are:

• Test Suite and Test Case: The above screenshot represents the Test Suite and the Test cases in that Test Suites. “API” is the title of the Test Suite… As there are multiple Test Suite and Test Case in our specific file, the Cypress Test Runner will show screenshots only for which the test is run.
• Steps of Test: Also, the Left panel will show details of all the steps performed, as defined in the Test Case. It is marked with one indicator in the preceding screenshot. See the below screenshot:

• Current URL: URL of the web page on the right-side board. It is marked with indicator 2 in the preceding screenshot.
• Browser Size: The browser size (Indicator 3) when the test case was running shows in the top right corner. It is set as default in Cypress configuration and can override as per test specifications.

Cypress Dashboard

This Service is a web-based component (optional) that provides various features related to projects and test runs in Cypress.

Below are some of the Features provided by Cypress Dashboard:

Feature	Description
Test Stats	Users can view the number and details of all failed, passed, pending, and skipped tests
Stack Trace	Users can view the complete stack trace of the failed test cases
View Screenshots	Users can view all the screenshots taken for the test cases during the test run.
View Video	Users can watch a complete video of the test run. Additionally, Users can also watch just a clip out of the entire test run.
Parallel Tests	Users can run multiple tests in parallel while running them on CI.
Grouping Tests	Users can group tests based on specific parameters and run them in one test run.
Cancel Test Runs	Users can cancel a specific test run from the Cypress Dashboard.
